CSF 92-00 Honda Civic w/K-Swap V3 Radiator

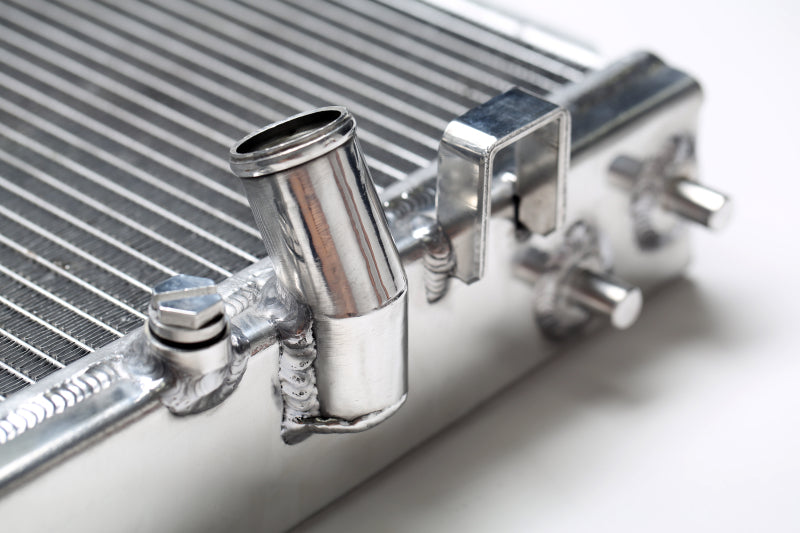

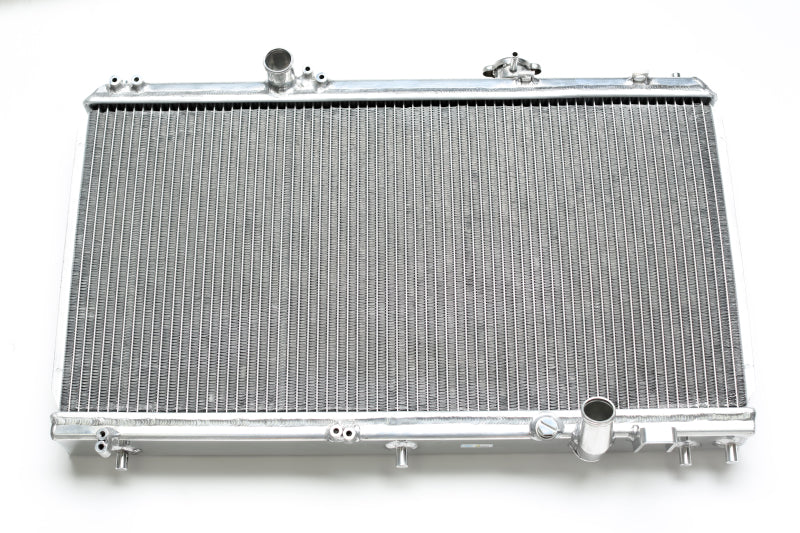

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your K-Swapped Civic/Integra running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

This Part Fits:

Year	Make	Model	Submodel
1997-2001	Acura	Integra	GS
1994-2001	Acura	Integra	GS-R
1994-2001	Acura	Integra	LS
1994-1998	Acura	Integra	RS
1995-1996	Acura	Integra	Special Edition
1997-1998,2000-2001	Acura	Integra	Type R
1992-2000	Honda	Civic	CX
1992-2000	Honda	Civic	DX
1992-2000	Honda	Civic	EX
1998-2000	Honda	Civic	GX
1996-2000	Honda	Civic	HX
1992-2000	Honda	Civic	LX
1992-1995,1999-2000	Honda	Civic	Si
1999	Honda	Civic	Value Package
1992-1995	Honda	Civic	VX
