JP3 Motorsports LHD FD3S RX7 Brake Booster Vacuum Tubing Simplification Kit

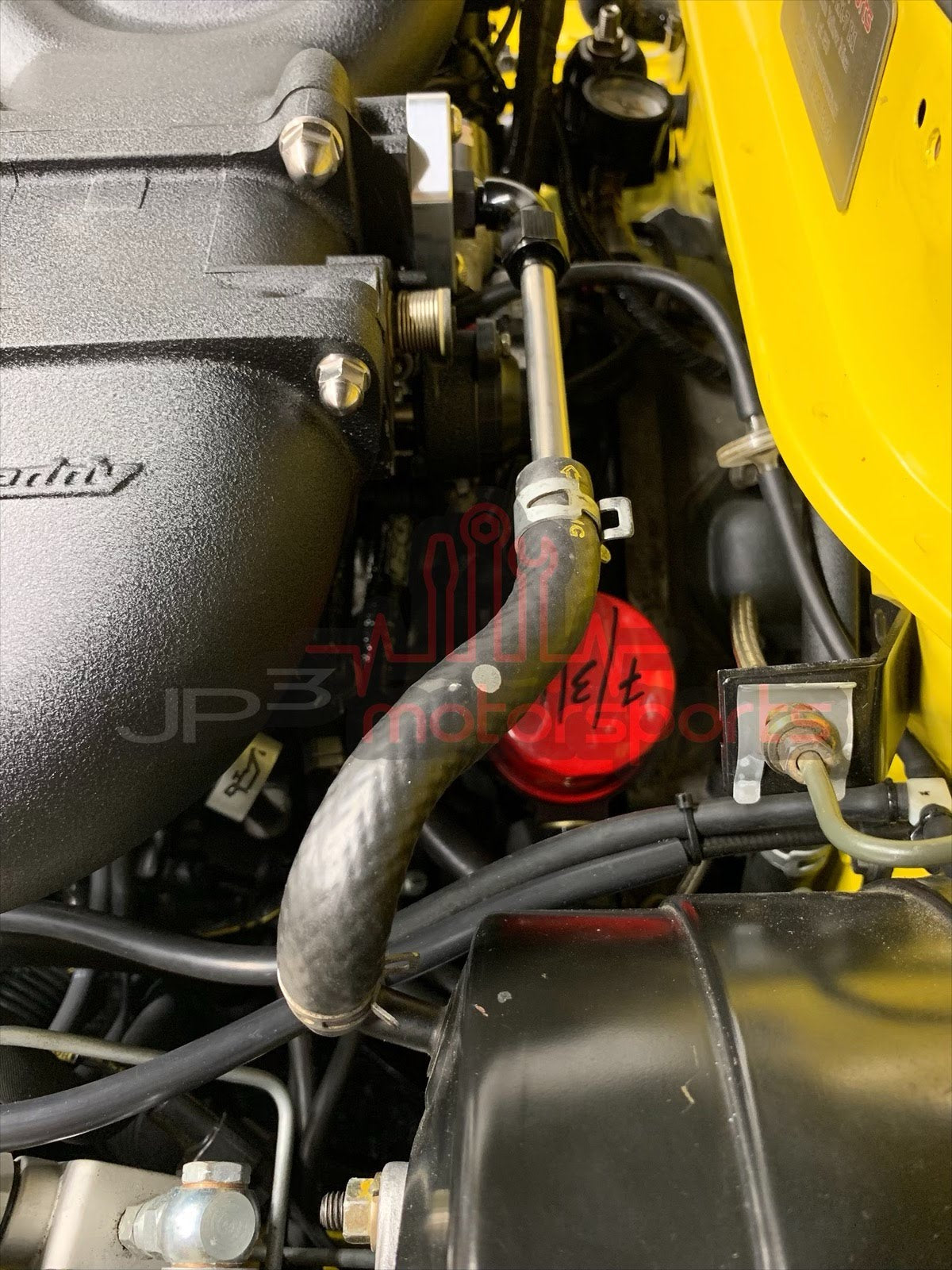

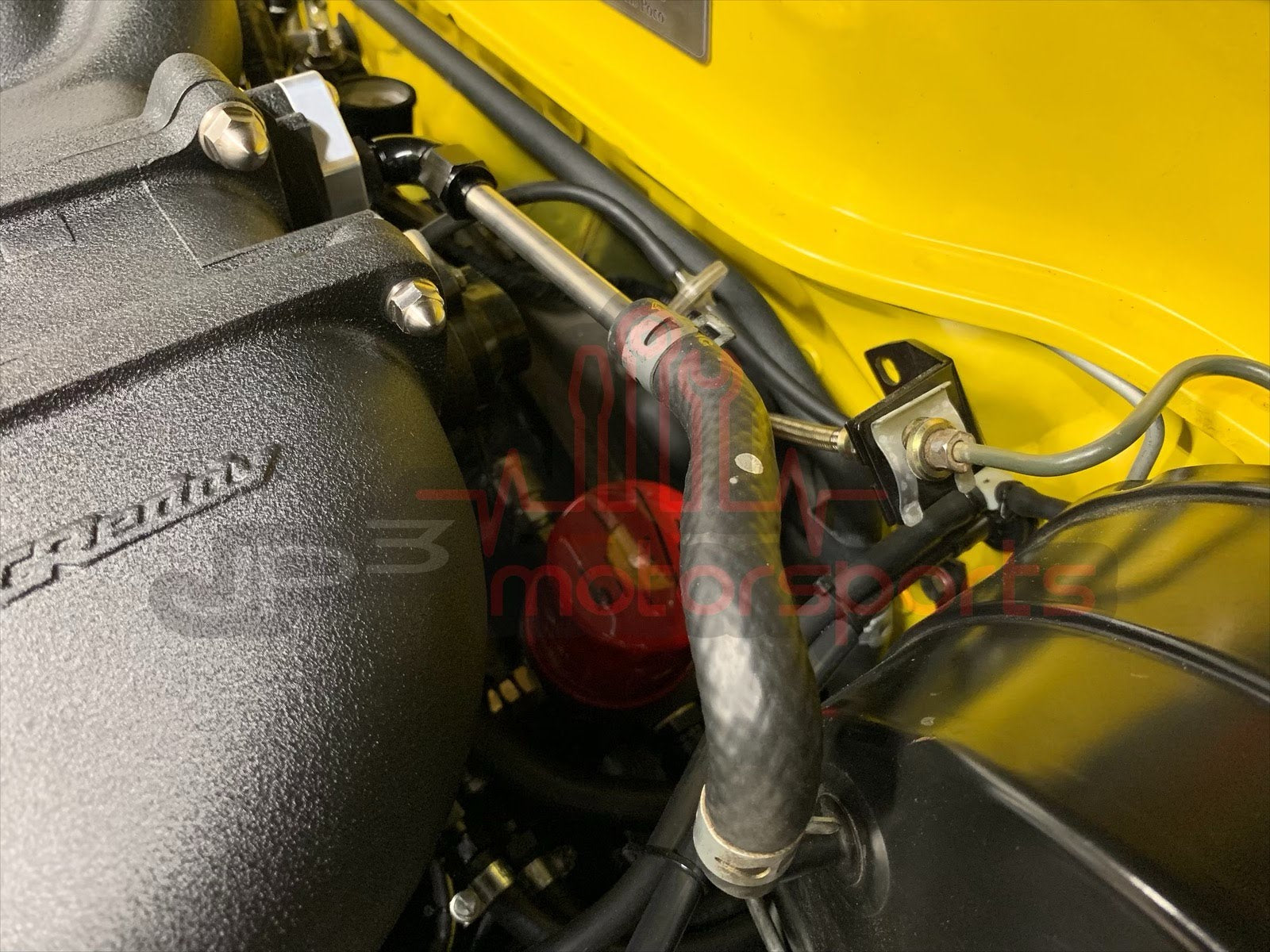

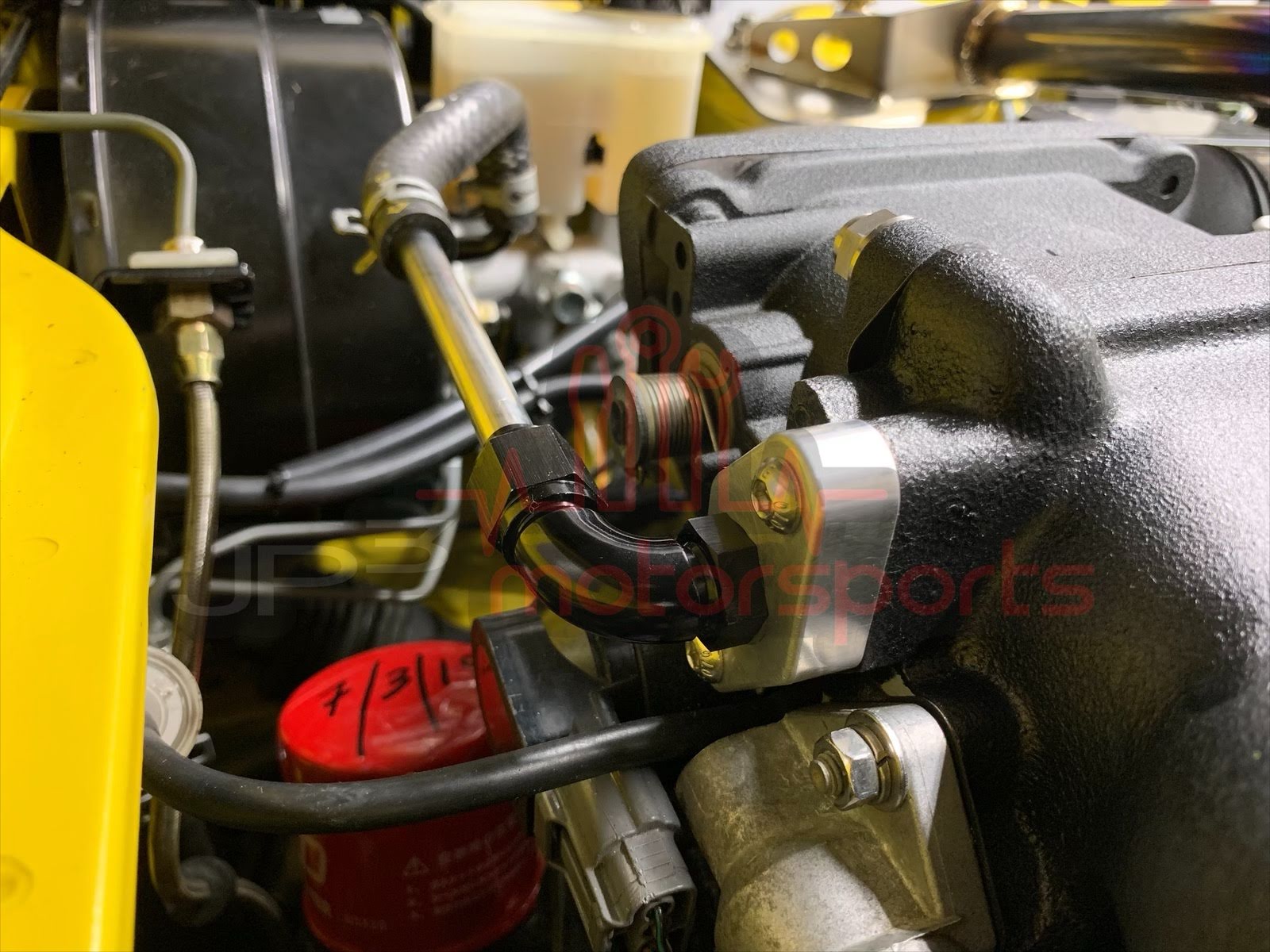

Our custom plug and play kit eliminates the factory hardline mounted on the firewall and simplifies the vacuum tubing for the brake booster on left hand drive (LHD) FD3s RX7s.
If you've already removed the ABS system, this kit gives you the additional aesthetic benefit of a cleaner, tucked appearance but the ABS does not have to be removed to use this kit.

This requires the removal of the OEM double throttle mechanism, which many have already removed and is covered with a block-off plate. The kit retains the use of the OEM brake booster hose which contains the one-way valve inside.

On most cars, this will not impede access to the oil filter. In some cases, where the owner has large hands, the tube nut can easily loosened and the tube itself can be moved to the side.

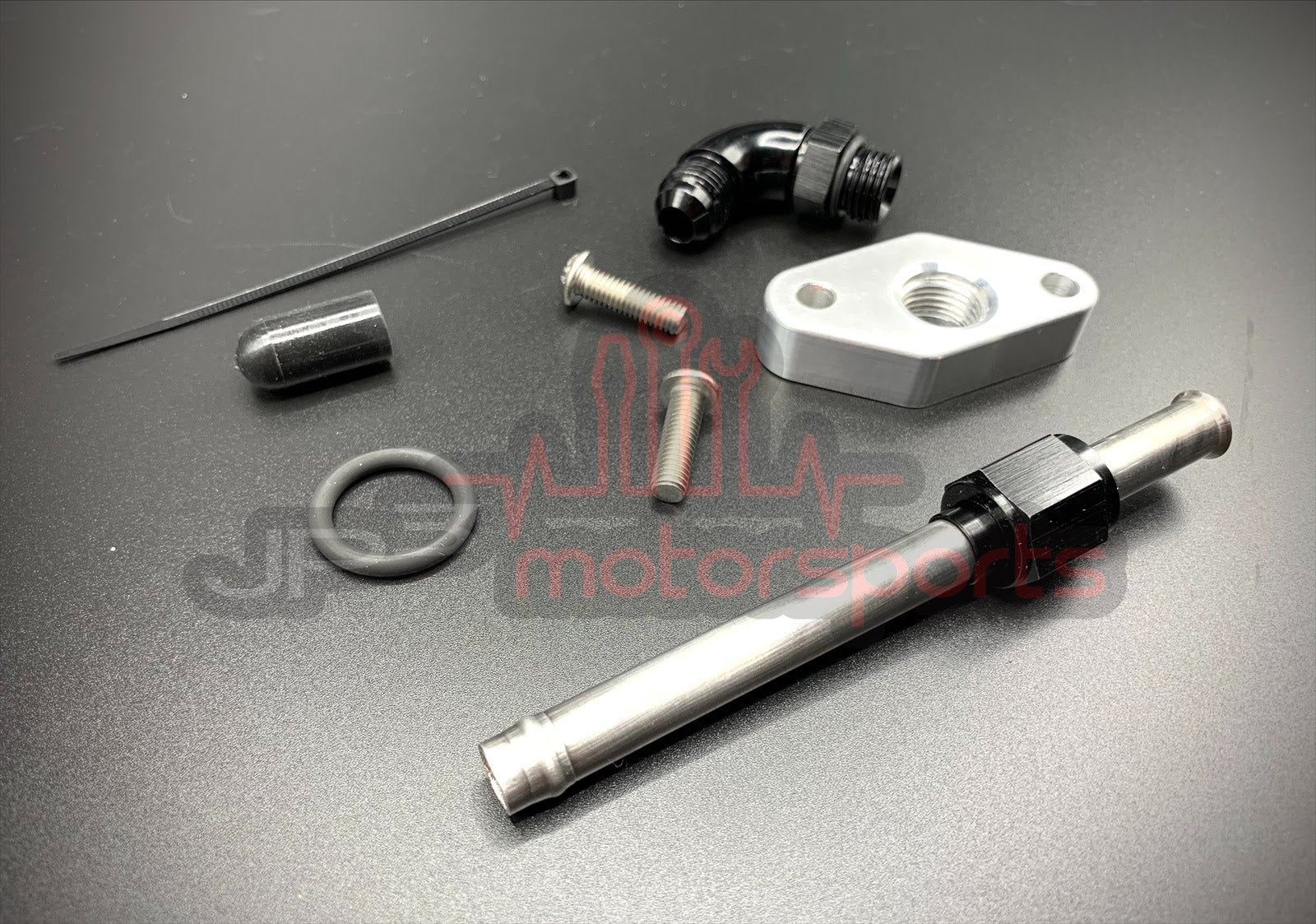

The kit includes all the parts needed to install:
  • Custom CNC aluminum adapter
  • Viton o-ring seal
  • -6AN ORB to -6AN flare swivel fitting

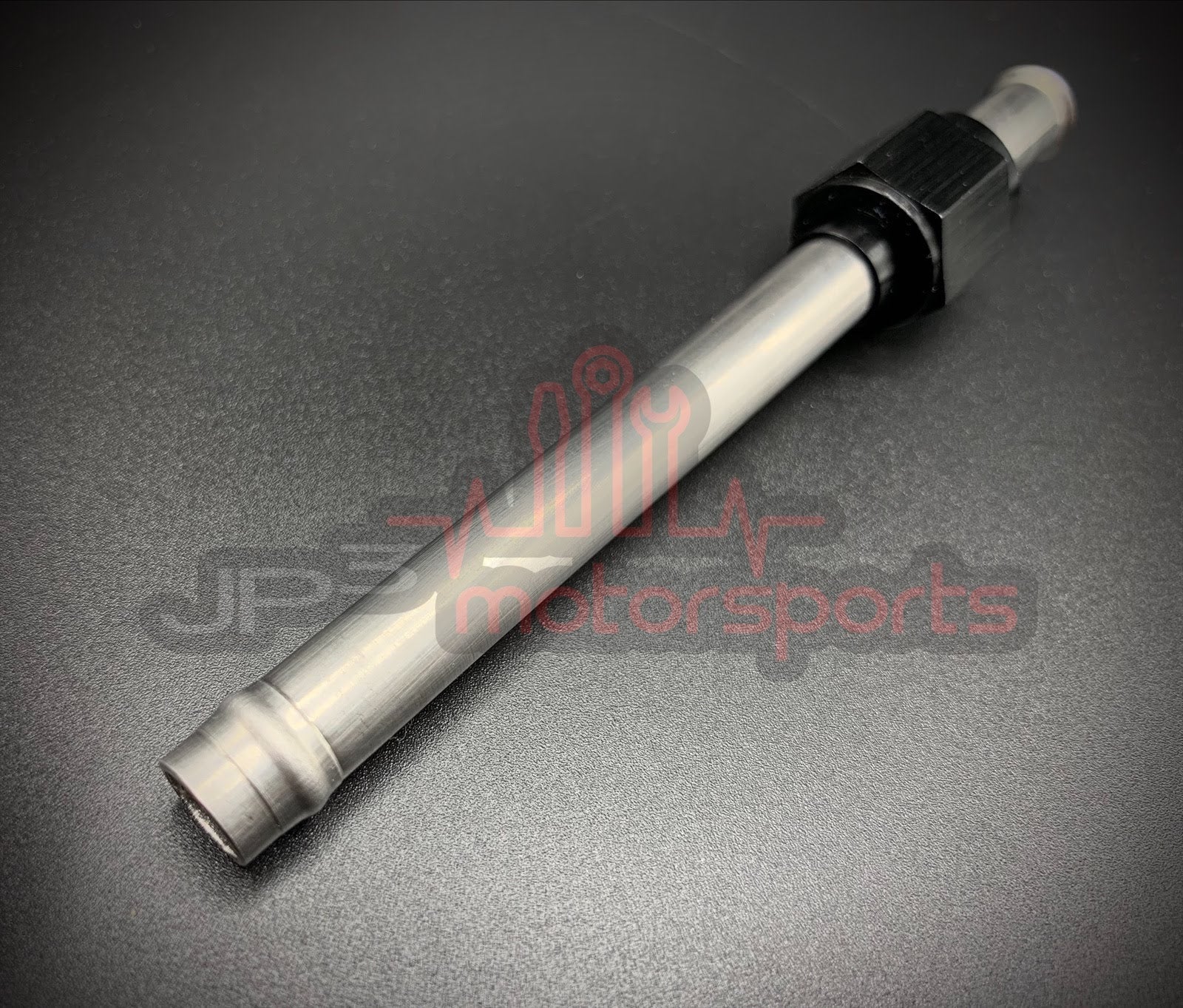

  • Stainless flared tubing with tube nut
  • Stainless allen head bolts
  • Silicone vacuum cap for the upper intake manifold (UIM)
