Regular price $385.00
Unit price  per
Shipping calculated at checkout.

If you've followed or seen the build of our CYM Single turbo car, you might have noticed that the car has both a Greddy V-Mount Intercooler kit AND a battery in the engine bay.

This battery tray kit IS that kit!

NO ONE on the market sells a complete battery tray kit for the FD RX7 that works with the Greddy V-Mount ... until now! Have a look at the pictures and notice the details, including the custom copper positive terminal bracket!

This kit is suited to fit an Odyssey PC680 battery or a battery with similar dimensions. Our test car does not have AC, therefore we cannot guarantee this will work with a car running both the Greddy VMIC and AC. However, there should be room for a dryer and lines (would likely require custom lines).

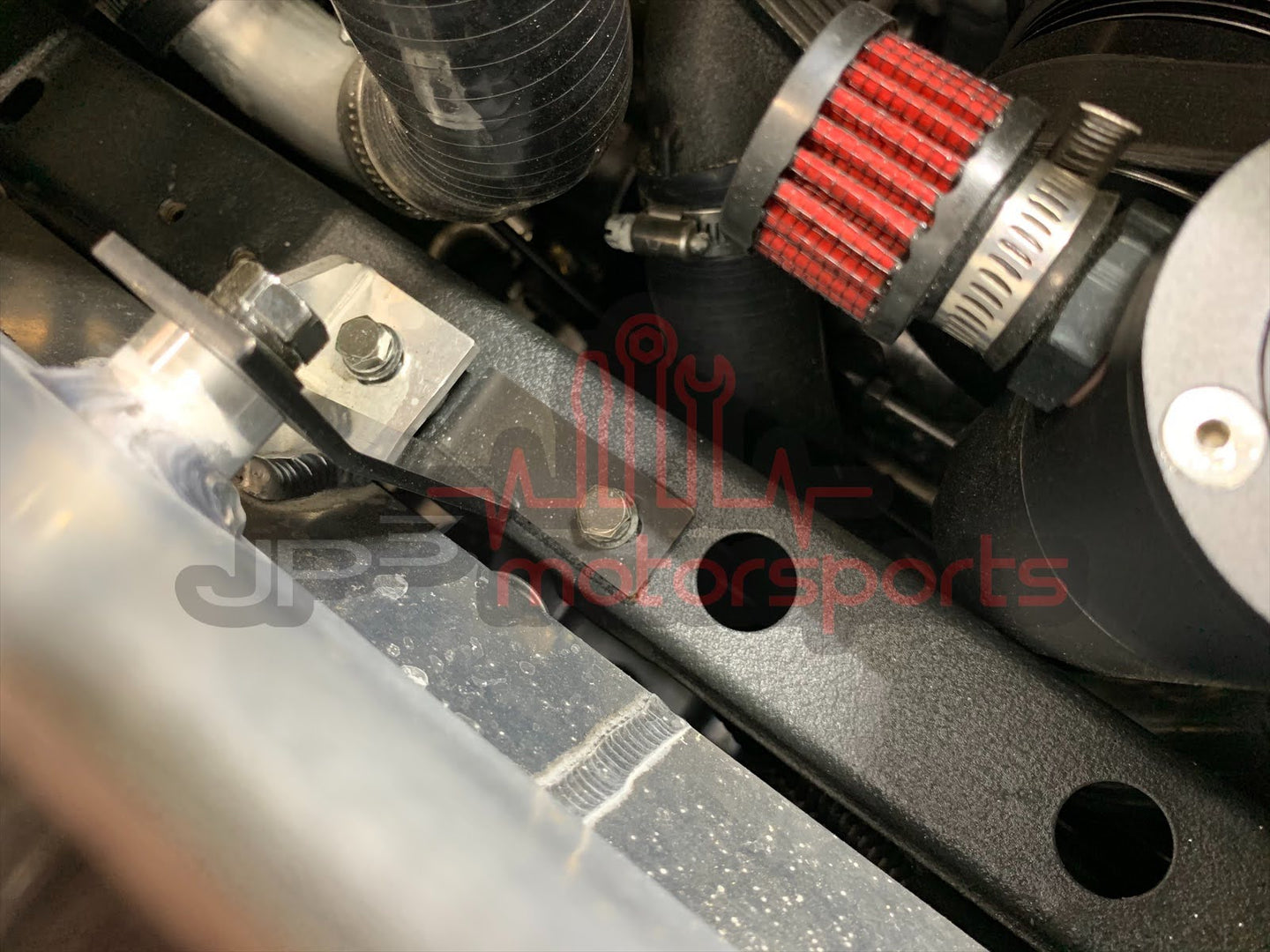

Brackets are included to move the Greddy V-mount intercooler to make room for the battery tray. One of the original Greddy V-mount intercooler brackets is reused.

Intake kits may need modification.

This setup can work with other custom applications.

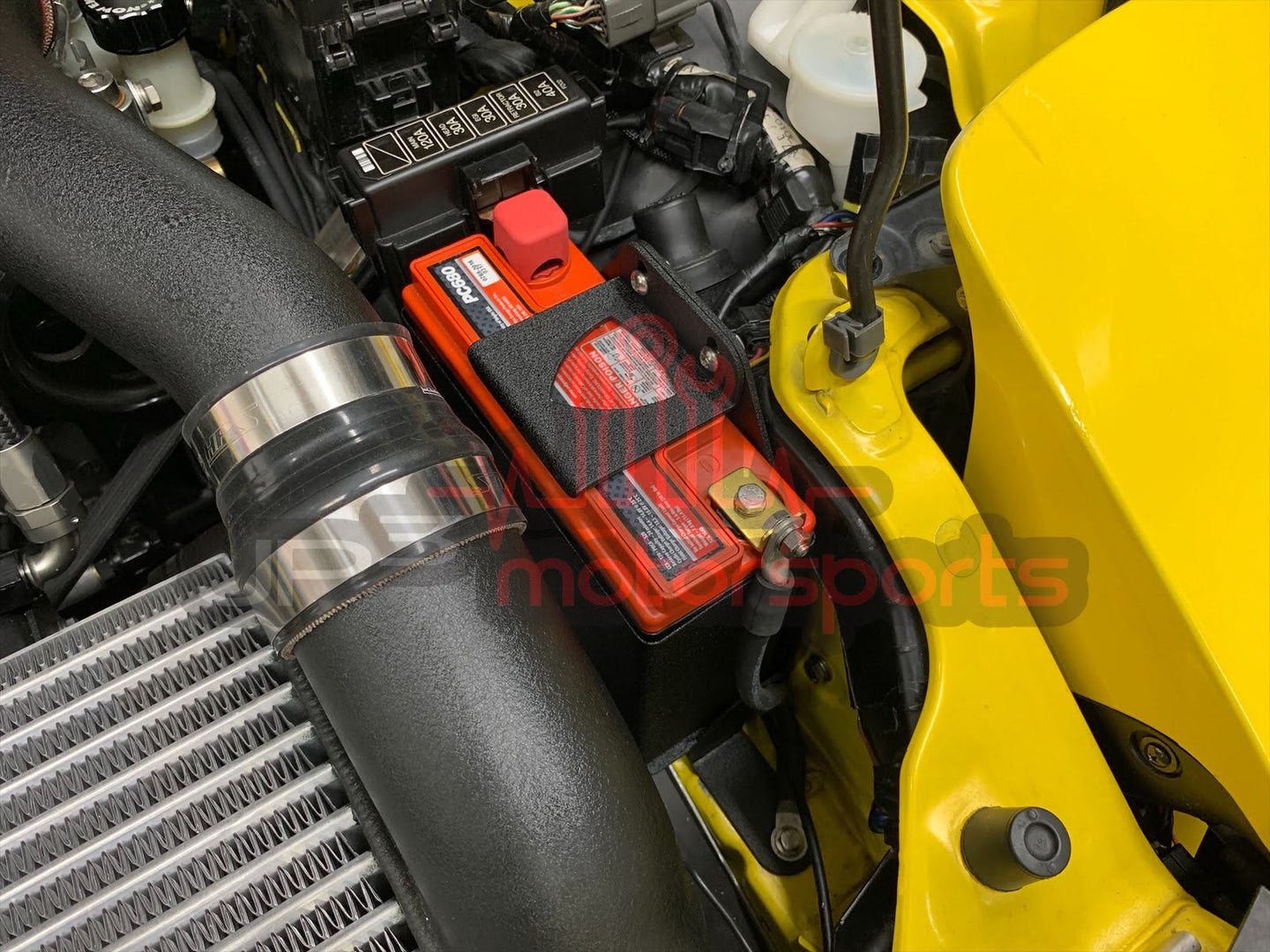

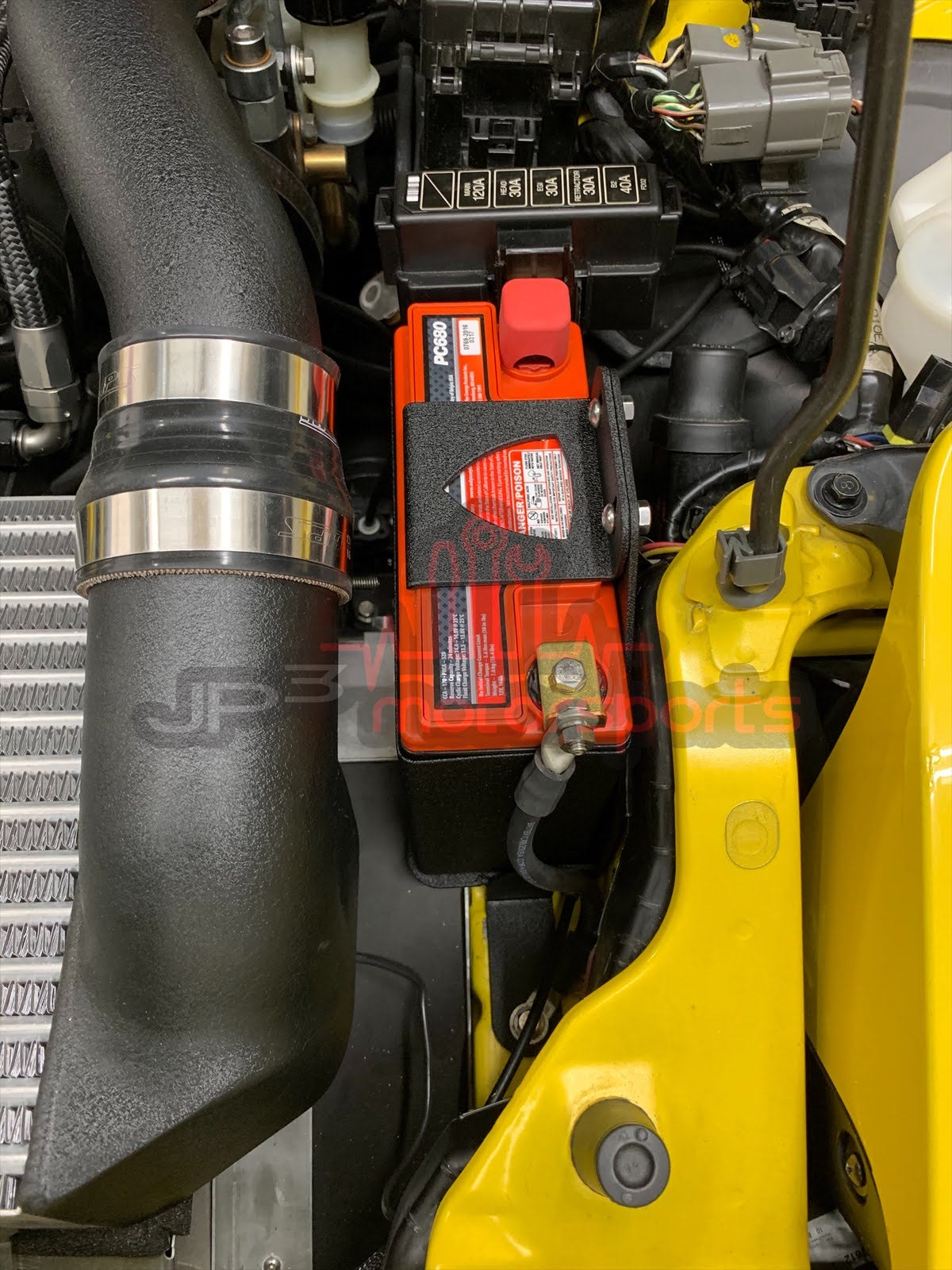

See pictures for fitment prior to ordering. Pictures should be detailed enough to act as an install guide.

Battery is not included with this kit.

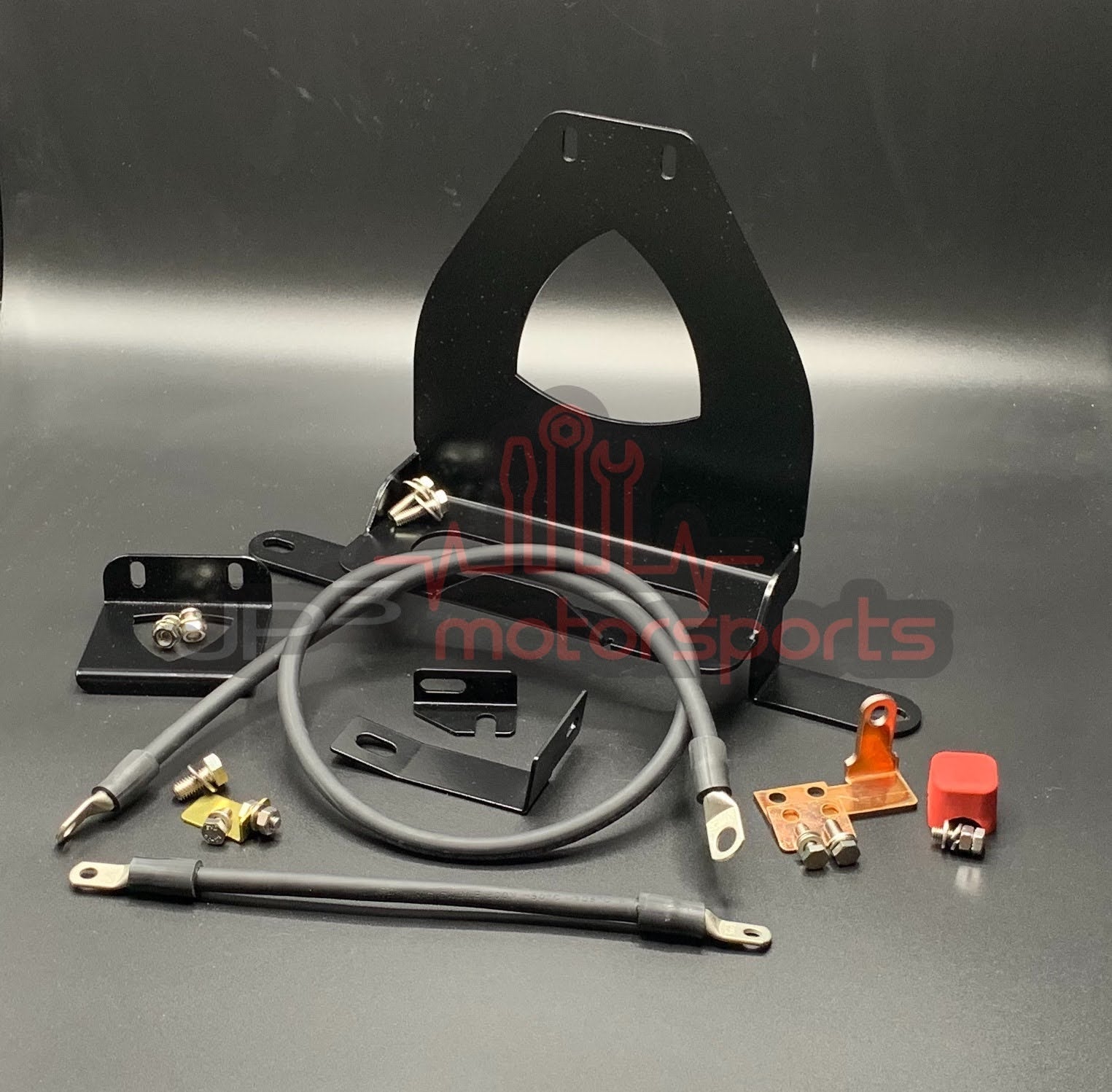

Product feature list:

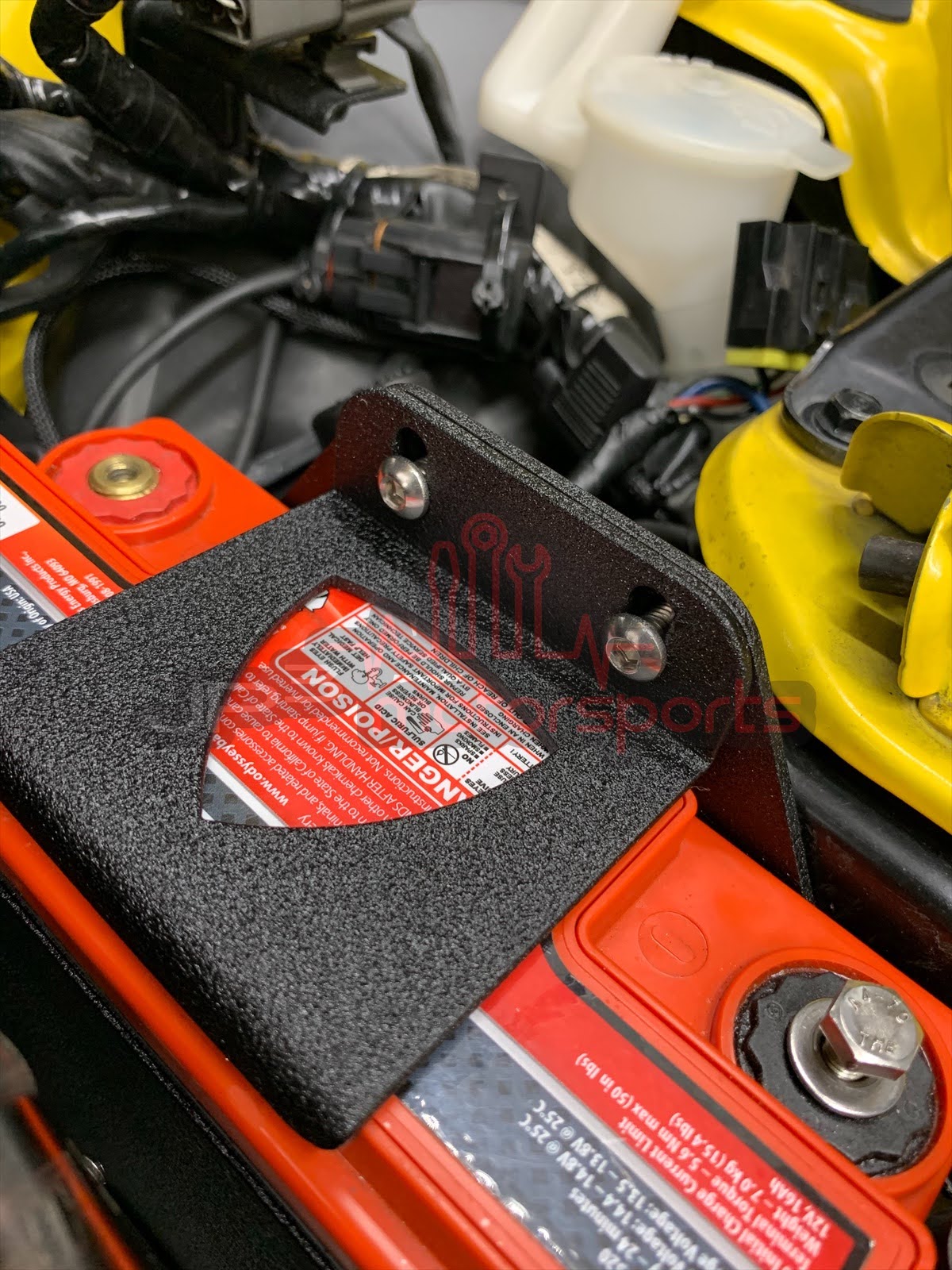

  • Battery tray and top bracket:
    • CNC laser cut
    • TIG welded 12ga steel
    • Satin black powdercoat
  • Intercooler brackets to move Greddy V-mount intercooler
    • CNC laser cut
    • 14ga steel
    • satin black power

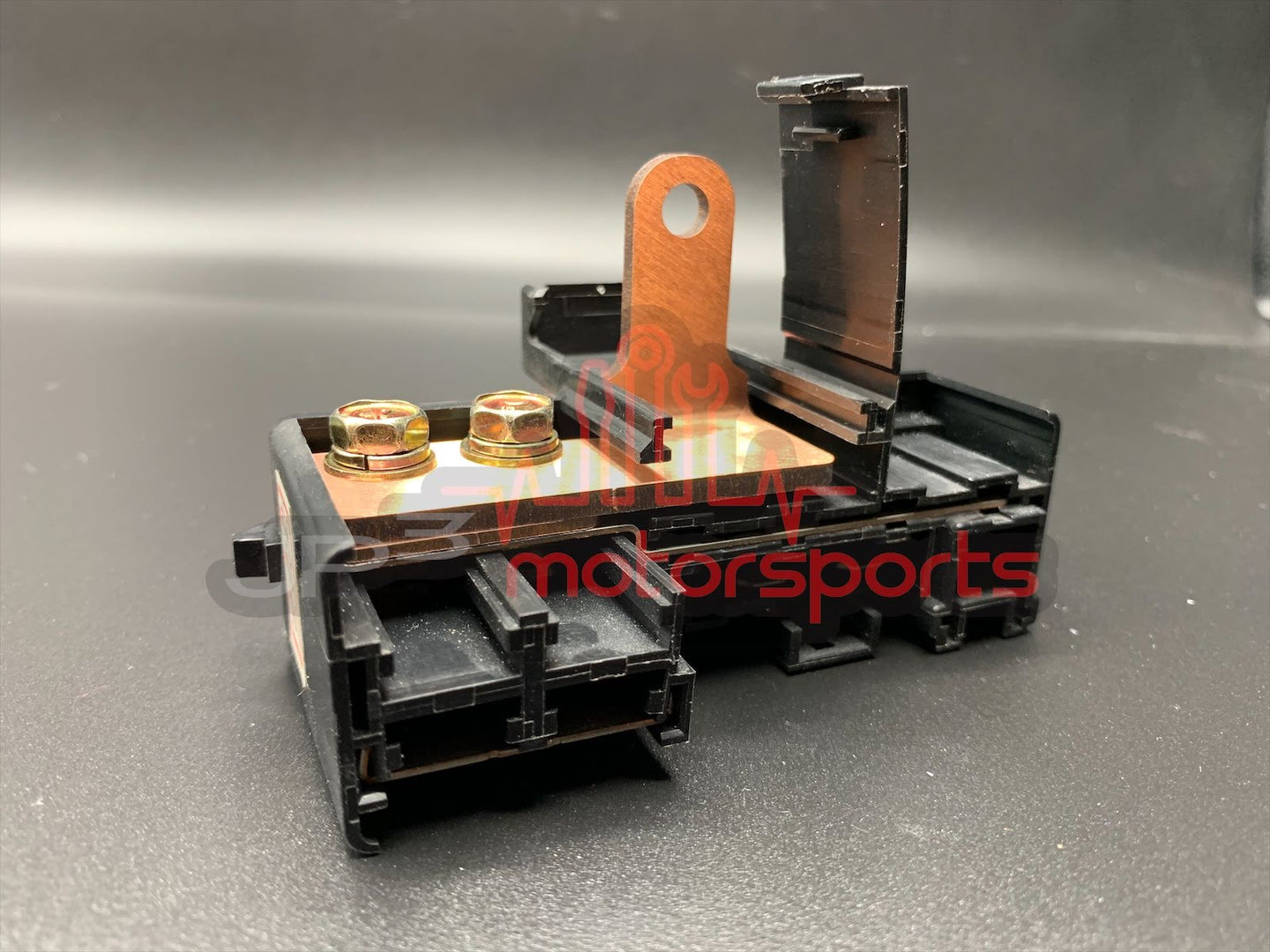

  • CNC laser cut copper positive terminal contact and spacer
  • Red terminal rubber cover
  • 4ga welding wire ground cables with copper bracket
    • Battery to chassis
    • Battery to engine
  • Stainless hardware
